Love the organization capabilities in a utility van, but require a truck chassis for more cab space or four-wheel drive? We’ve designed KUVcc Utility Truck Bodies just for you.
You get all the same great benefits of a KUV, but in a package that’s compatible with a truck cab chassis. With more than enough secure compartments and cargo area storage, the KUVcc can handle all of your tools, equipment and parts while keeping them separated and organized. The KUVcc features solid steel construction so you know you will get years of durable service out of this enclosed utility body.
Productivity and efficiency is vital to your success, so choose a Knapheide KUVcc to add a boost to your bottom line.
Knapheide’s Value-Master X Platform Body features solid steel construction and is available in many different lengths and widths to fit a variety of chassis applications. Choose wood, steel or treadplate flooring and pick from numerous side accessories including stake sides, solid sides or refuse sides to customize for your hauling job. Pair this flatbed up with a hoist to add dumping functionality.
Regardless of your needs, the Value-Master X Platform Body from Knapheide has you covered.
Heavy-Hauler Junior flatbed truck bodies are designed with versatility in mind to meet various vocational needs.
Knapheide's Heavy-Hauler Junior Platform Body is equipped with external rub rails, integrated tie down points and stake pockets, along with a heavy-duty bulkhead and robust flooring options. Add steel stake sides to a Heavy-Hauler Junior Platform Body to transition into a dedicated Stake Body, or choose a hoist for dumping applications. The Heavy-Hauler Junior Platform Body is designed to be multi-faceted in order to suit a wide variety of vocations.
The Heavy-Hauler Junior offers all the features you need to tackle tough jobs without breaking your budget.
Need a versatile Platform Body that can haul just about anything? Knapheide's Value-Master X Platform Body features solid steel construction and is available in many different lengths and widths to fit a variety of chassis applications.
Choose wood, steel or treadplate flooring and pick from numerous side accessories including stake sides, solid sides or refuse sides to customize for your hauling job. Pair this flatbed up with a hoist to add dumping functionality.
Regardless of your needs, the Value-Master X Platform Body from Knapheide has you covered.
Our light-duty dump truck bodies aren’t built “light duty” at all. Knapheide Fixed Side Dump Bodies feature double panel, high-strength steel construction on the sides and tailgate. In addition, choose from a seven gauge or 10 gauge HRCQ steel floor.
Choose from two different styles of understructure, either stacked crossmember or crossmemberless design, depending upon your preference. Utilize the double-acting sub frame hoist for effortless dumping and bulk material spreading applications. Numerous options including underbody toolboxes and packs for secure storage, quarter or full cab shields for protection, manual or electric tarps for retaining material and many others are available to increase the functionality and productivity of your next dump body.
Choose the proven Knapheide name for your next dump body purchase.
Used in a variety of industries, a box body provides many benefits for your cargo hauling needs. When keeping your cargo out of the elements and safely secured when not in transit, box bodies are an ideal choice.
Knapheide Box Bodies come with standard features to help you get the job done. With a full size rear roll-up door, cargo can be easily accessed.
Box bodies are available with .040” aluminum sidewalls or 0.5” FRP sidewalls. Aluminum sidewalls offer exposed Z posts with interior options for maximum cargo control. FRP provides a smooth outer sidewall perfect for graphic artwork, with increased interior space void of interior framing.
- Standard Features:
- Floors are 2”x8” pine shiplap (laminated hardwood for bodies 18’ and longer)
- Floors include 12-gauge steel side rail band structure
- Rear threshold is 10-gauge steel with built-in drain groove to prevent water from entering cargo area
- Corner posts are 12-gauge steel with 14-gauge reinforcement, adding extra durability
- Standard rear roll-up door comprised of .25” composite, which features 10% lighter weight than standard wood doors with zero rot
- 4” ICC bumper
- .040” aluminum side walls
- Grab handles
- LED integrated S/T/T and B/U lights
- Cast aluminum front corners
- Extruded aluminum roof edging to prevent water intrusion and provide durability
- Structural long sills with structural cross members:
- On 16” center for bodies 17’ and shorter
- On 12” center for bodies over 17’
- Rear steel header reinforced with steel inner brace supports
- One interior LED dome light (two lights in bodies 18’ and longer)
- Fiber reinforced plastic (FRP) front wall
Knapheide Box Bodies come with standard features to help you get the job done. With a full size rear roll-up door, cargo can be easily accessed. Choose a Knapheide Box Truck (KBT) or Knapheide Box Van (KBV) to fit your needs.
Our box bodies are available with .040” aluminum sidewalls or 0.5” FRP sidewalls. Aluminum sidewalls offer exposed Z posts with interior options for maximum cargo control. FRP provides a smooth outer sidewall perfect for graphic artwork, with increased interior space void of interior framing
Knapheide’s landscape truck bed isn’t your normal Landscaper Body.
It includes optimized standard features to take your landscaping or lawn care operation to a new level. Need the ability to transfer, dump and distribute bulk materials like mulch, dirt, rock and more? The integrated dump hoist provides effortless operation while an optional metering gate enables the landscaper to easily control filling wheelbarrows. Load and haul palletized materials? A 50? side access swing out door accommodates for quick forklift loading. Add additional functionality with an optional storage pack or underbody toolbox.
If you want to upgrade your landscaping vehicle, check out the Knapheide Landscaper Body.

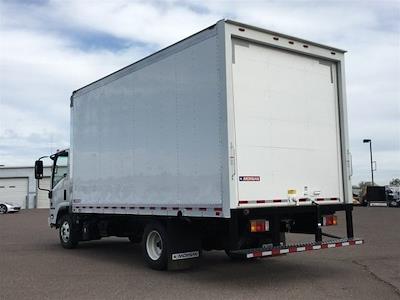

A reputation for designing and building the best box truck bodies in the industry means top OEM's are happy to work with Morgan to deliver the truck you need — FAST. Morgan's ability to gain immediate access to top-of-the-line chassis and components, directly benefits dry freight haulers who don't have time for delays. Fast turnaround means faster return on your investment!
SIX DIFFERENT PRE-CONFIGURED MODELSQuick turnaround is not devoid of options. Morgan builds a series of exceptional features into each of six pre-configured models. With lengths ranging from 12 to 26 feet, heights from 97 to 103 inches, and widths from 96 to 102 inches, it's easy to choose a body that meets your size specifications.
When it comes to features, Morgan provides strength and durability that supersedes the need for variety. With Fastrak, there's no need to ask for 1-1/8" laminated hardwood flooring, aerodynamic design, Poly-Tuff corner caps, a built-in rain channel, anti-snag roof-bows and built-in safety features. They're all standard Fastrak features; and further proof that Morgan knows what it takes to build the best bodies in the business.
- SUBFRAME - 3" I-beam Crossmembers On 12" Centers With 4" Longrail , Mylar Tape Is Applied Between All Steel Subframe Components And Extruded Aluminum Lower Bottom Rails To Prevent Corrosion
- FLOOR - 1- 1/8” Laminated Hardwood Fastened To Subframe With 2 Countersunk Screws Per Floor Board Per Cross Member In A Staggered Pattern. Floor Boards Are Ship Lapped And Preundercoated For Protection From Elements.
- THRESHOLD - Steel Galvanized Angle Flush To Rear
- REAR DOOR - Overhead Roll-up Door
- REAR FRAME - Galvannealed Steel -painted Imron White, Includes Built-in Header Design, Clearance Light Protector And Rain Deflector, Curbside And Roadside Grab-handles
- ROOF - .032” One-piece Aluminum Sheet With Anti-snag Roof Bows On 24” Centers With Crowned Roof Design Which Prevents Water/Ice Pooling
- SKINS - .040“ Aluminum, Pre-painted White
- SIDE WALL - Extruded Aluminum Top And Bottom Rails With 1-3/8” Deep Galvanized Steel Z-shaped Vertical Posts Installed On 16” Centers
- FRONT END - Aerodynamic Aluminum Radii and Morgan’s Patented Poly-tuff Corner Caps
- BUMPER - 5” Structural Bumper With Pooched Surface And Closure Plate
- INTERIOR LIGHTING - (1) Domelight With Indicator Switch Mounted In Cab Dash
- EXTERIOR LIGHTING - Led Sealed Clearance Lights, Per Fmvss-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header.
- MOUNTING - Full Mount-u Bolt
- MUDFLAPS - Morgan 24" X 36" Black
Landscapers, maintenance crews, contractors, material suppliers and tradesmen of all kinds know there's no room in the schedule to worry about durability or to work around the limits of your truck. Morgan's LandscaperPro dump truck body is engineered to provide superior strength regardless of the body size. Steel I-beam construction, heavy-duty 10-gauge steel flooring, steel rub-rails and LED lighting are just a few of the standard features that result in a body that's hard to beat!
Make work easier with our integrated double acting hydraulic cylinder scissor hoist, forklift-friendly side door access, unencumbered bed access, and underbody tool storage options to maximize bed space. When your work demands strength, durability, and versatility you can depend on, you know you can depend on Morgan!
There are many service bodies on the market, but there’s only one Classic II™. The Classic II™ steel service body, available for both single rear wheel and dual wheel chassis, is built with premium A60 coating-weight steel construction and our exclusive Triple Protection E-coat primer and powder coat finish to resist corrosion better than any other truck body on the market.
In addition, the Classic II™ offers features not found on any other service truck body. Our pressed diamond plate floor and inner tailgate surface provides superior strength and durability. Our patented hidden hinge system is fully adjustable and theft-resistant. Our exclusive Dual-Pro® seal system offers expanded door clearances and superior weather protection.
And that’s just the beginning. Add our industry-leading 6-year limited warranty and it’s easy to see why there’s No Body Better than the Classic II™.
- 3 Year Warranty
- 1/2” FRP Solid Bulkhead Wall
- 12 Gauge Steel Flat Floor Frame
- 12 Gauge Steel Hat Section XMembers on 16” Centers
- 10 Gauge Steel Floor Frame Rear Sill
- 2"x6" Shiplap Dense Southern Yellow Pine Floor
- 12 Gauge Steel Rear Door Structure
- Galvanized Roof Bows on 16” Centers
- .032 Exterior Roof Aluminum
- Aluminum Sidewall Frame Construction
- 1 1/2" Aluminum I-Beam Sidewall Studs On 16" Centers
- .043 Buck Riveted Exterior Aluminum Sidewall
- 3/8" Plywood Interior Sidewall Liner
- Extruded .125 Aluminum 3" Radius Corner Posts
- Extruded .125 Aluminum Roof Siderails
- .130 Aluminum Protective Rubrail
- Interior Dome Light with Switch
- Composite Roll Up Door
- Bottom Body Wrap
- Steel ICC Dock Bumper w/ Running Lights & Reflectors
- Rear Mud Flaps
- Complete Body Undercoating
The evolutionary E-Tipper gives you all of the most desired features in a dump body - strength, value and style.
From the sculpted front and rear pillars to the one-piece seamless sides, to the western crossmemberless understructure, the E-Tipper combines good looks and durability with superior design.
Features can be added to create the most versatile body for your needs without custom leadtimes. Body options and accessories add function, are extremely economical and easy to order.
Every E-Tipper body is backed by Crysteel’s 5-year warranty.
Hillsboro Industries has over 3 billion miles of experience building aluminum truck beds. This 2000-series model is perfect for Ford, Ram or GM single and dual-wheel trucks. Our all-aluminum construction makes the bed lighter and more fuel-efficient while also enhancing its appearance without the need for paint. Built to be corrosion-resistant, Hillsboro truck beds are backed by an industry-leading three-year limited warranty.
City streets and neighborhood roads are no contest for the Wabash Cargo Body. The low-profile design and exceptional maneuverability make for a smooth ride. Designed for practicality and flexibility the Wabash Cargo cutaway is the solution to get in, get out, and move on to the next stop.
